€439.00
0/5

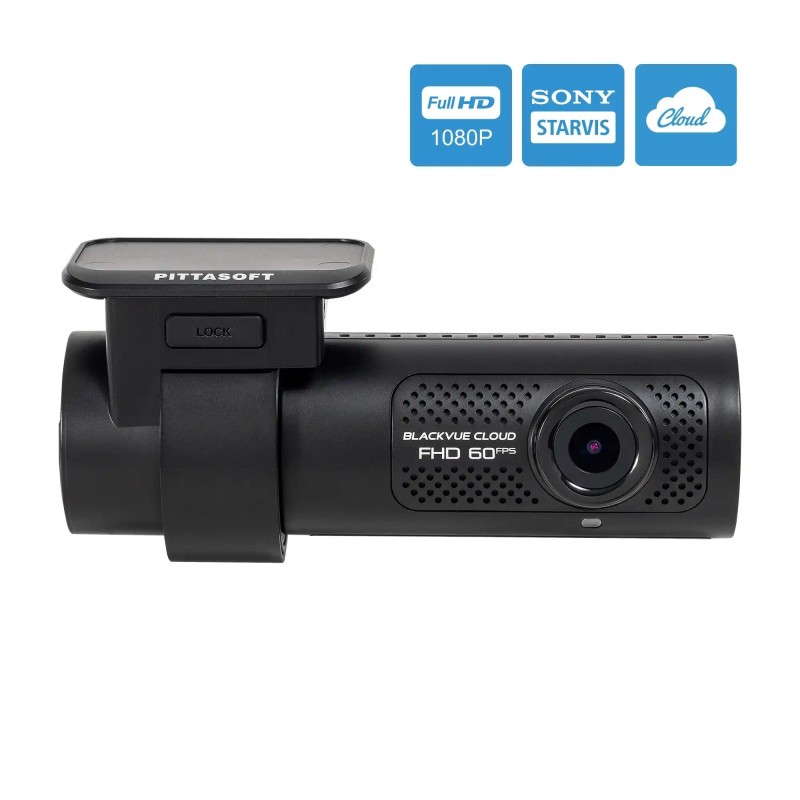

BlackVue DR770X-1CH features Full HD Sony STARVIS™ image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

Memory

Quantity

  • Pay safely
  • Free shipping
  • 14 days cooling-off period and free returns

Share on:

Facebook F X Twitter Pinterest P
Add to Cart

Best Night and Day Video Clarity
and Built-in Cloud Connectivity

The DR770X-2CH is a dual-channel dash cam with BlackVue Cloud connectivity.
Both front and rear cameras pack back-illuminated Full HD Sony STARVIS™ image sensors for best image quality under any light.
This stealthy dashcam also comes with built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot or optional USB plug-in LTE module.

Dual Full HD Cloud Dashcam

Night Footage Never Looked This Good

Dual STARVIS™ sensors in Full HD 1080p (front 60 / rear 30 frames per second).
Fluid videos of the front and back of your car at a wide 139° view angle.
The back-illuminated STARVIS image sensors produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.

Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).

With the free BlackVue Cloud service, check on your car from anywhere, anytime.

Upgrade to Dual-Channel

The single-channel DR770X-1CH has a port to connect a secondary camera, would you wish to upgrade in the future. With a secondary camera and corresponding video cable, turn your DR750X-1CH into DR770X-2CH, DR770X-2CH IR or DR770X-2CH TRUCK.

Native Parking Mode

Hardwiring cable included
DR770X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR770X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

GPS, Wi-Fi and Optional LTE

GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).

Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).

LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.

(*) SIM card not included.

Set up (easily) and forget

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.

BlackVue X Series Basic Installation

BlackVue X Series Hardwired Installation

BlackVue Cloud Guide

Seamless Pairing with the BlackVue App

Effortless setup. Secure. No password.

With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Built-in Speaker, Impact sensor and Motion Detection

Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).

Sleek Interface

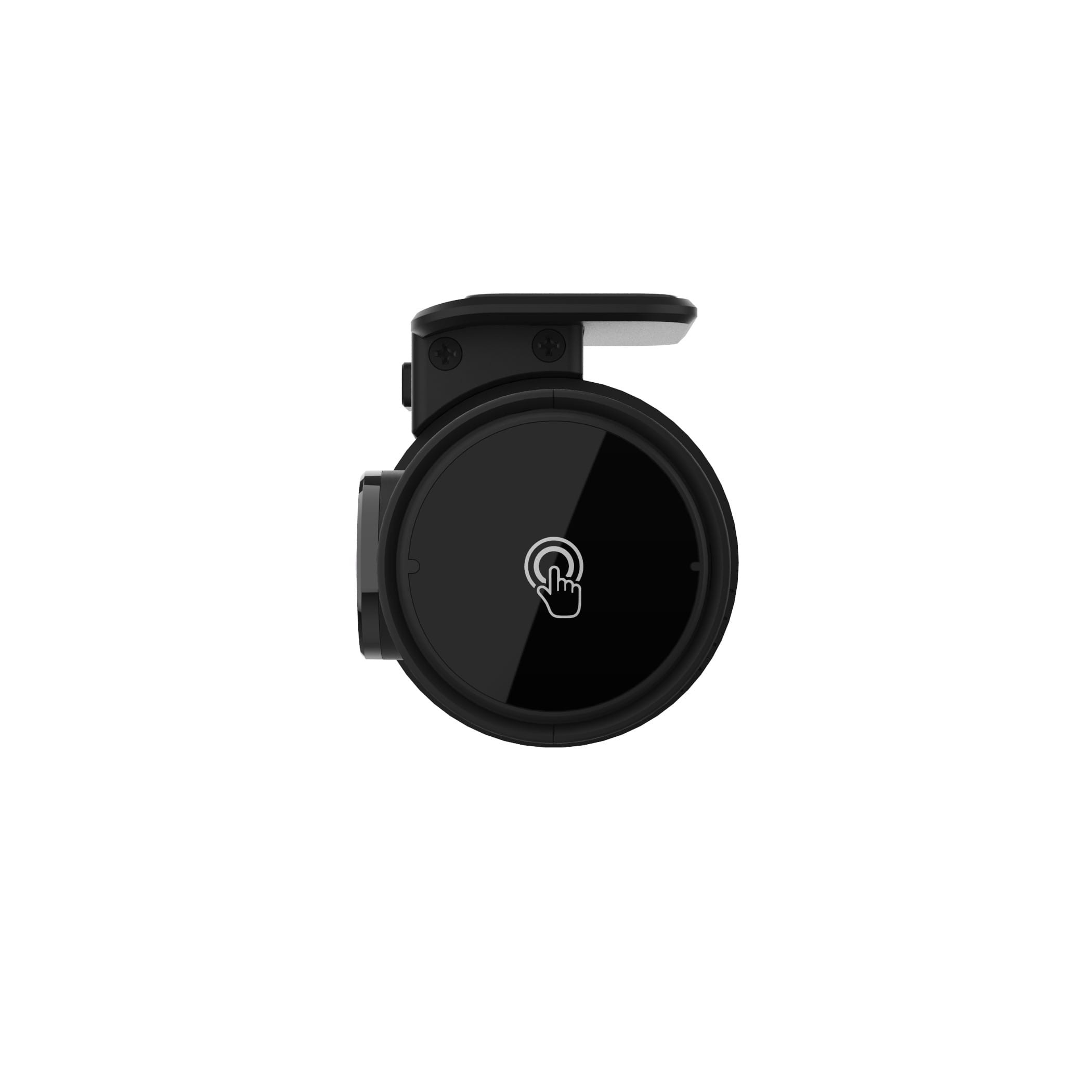

Touch sensor
Tap the touch sensor to trigger Manual Event videos.

Format button
Hold to format the microSD card.

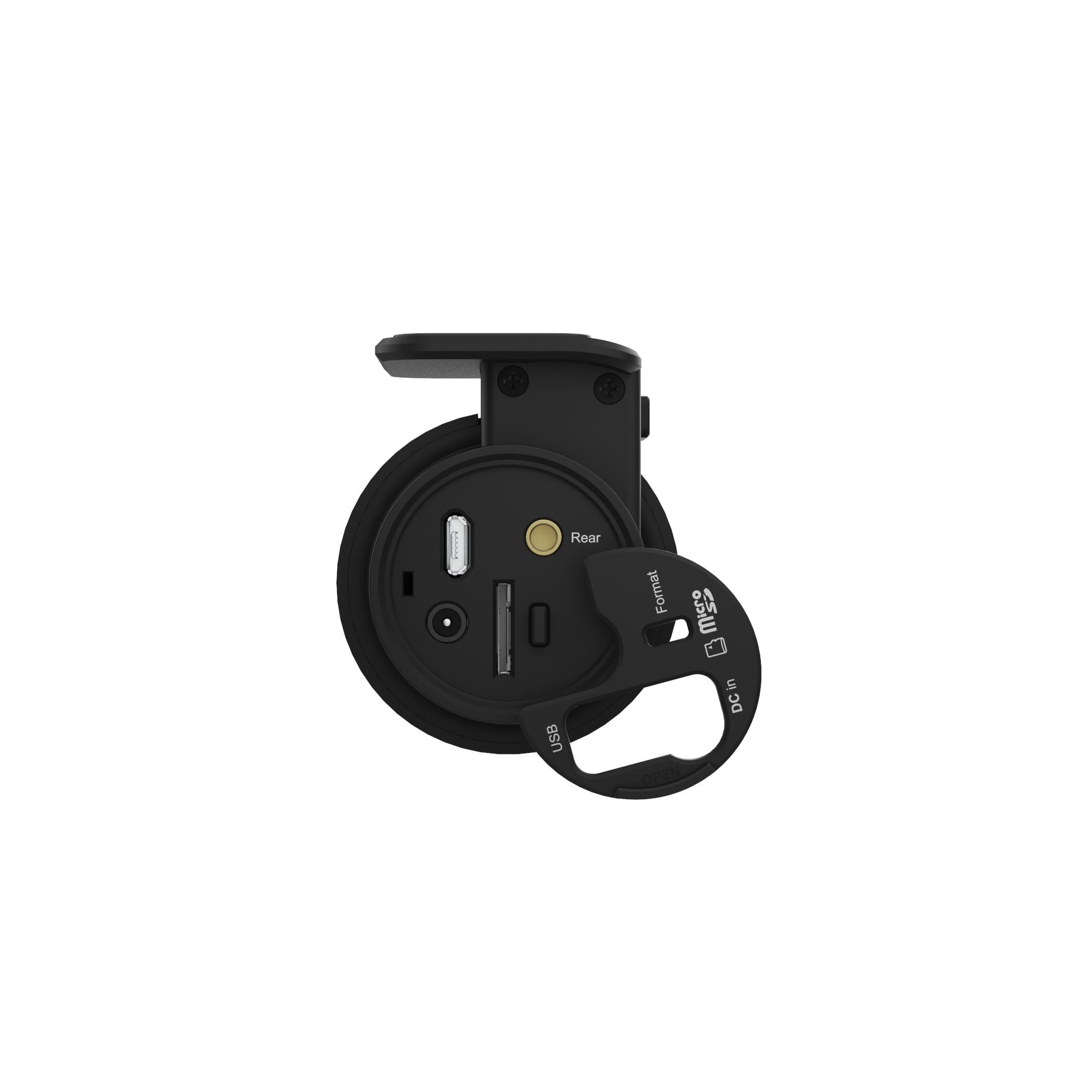

Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Easily manage your video files

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.

With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

BlackVue Cloud

Me and My Car. Connected.

Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.

Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.

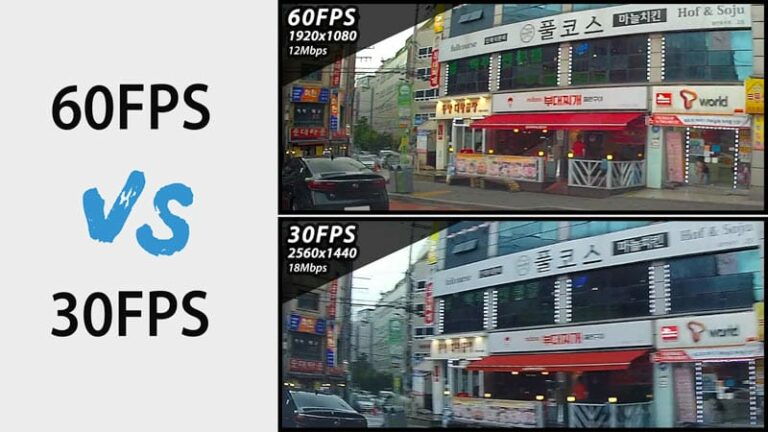

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

LTE Connectivity Module (Optional)

Unlock BlackVue Cloud access. Share Wi-Fi in your car.

The CM100GLTE provides easy 4G LTE connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card. The CMG100LTE is powered and connects via the USB port of your dashcam.

When connected to the CM100LTE, BlackVue DR770X Series can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network.

Tamper-Proof Case (Optional)

The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.

Triple protection

  • Locks the dashcam’s angle via an hex screw to prevent rotation.
  • Blocks the access to the microSD card slot.
  • Protects against the unplugging of the power, video and USB cables.

Specificaties

Model Name DR770X-1CH
Channel 1CH
Highlights Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions Black / Width 118.5mm x Height 36mm / 104g
Memory Support MicroSD card up to 512 GB
Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
Parking Mode YES (hardwiring cable included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate Full HD @60fps * Frame rate may vary during Wi-Fi streaming
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25 Mbps, Highest: 12 Mbps, High: 10 Mbps, Normal: 8 Mbps
Format Free YES (adaptive)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b, g, n)
Cloud Compatible YES
GPS Built-in (Dual Band: GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Button Format Button, Touch Sensor
Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature -20°C – 80°C (-4°F – 176°F)
High Temp Cut Off Approx. 80°C (176°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Certifications FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
