€889.00
0/5

BlackVue DR770X Box features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

Memory

Quantity

  • Pay safely
  • Free shipping
  • 14 days cooling-off period and free returns

Share on:

Facebook F X Twitter Pinterest P
Add to Cart

Built for Stealth and Security
Triple Camera Protection
+ Secure Recording Unit

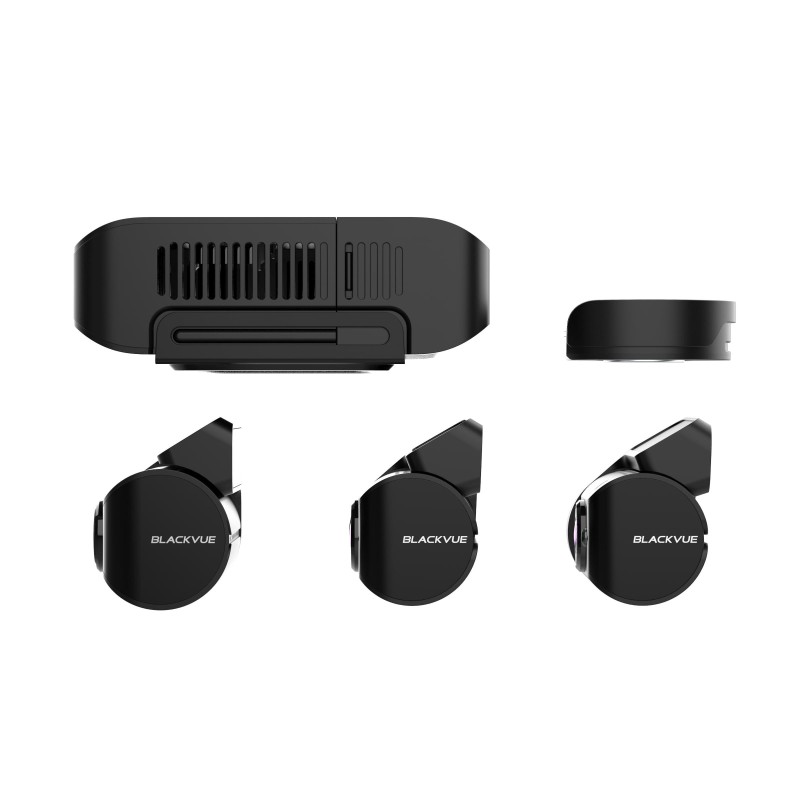

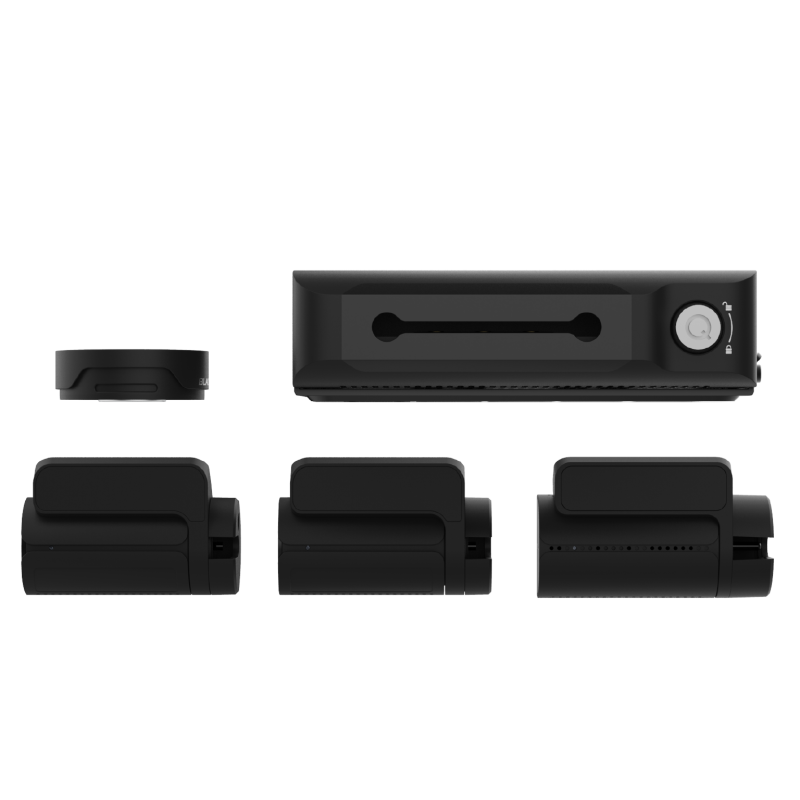

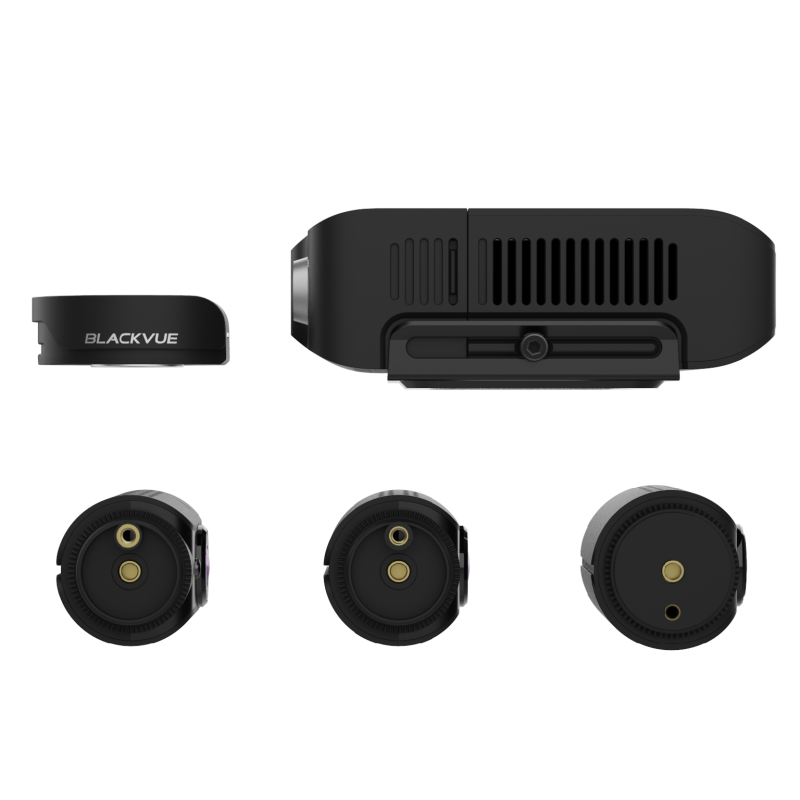

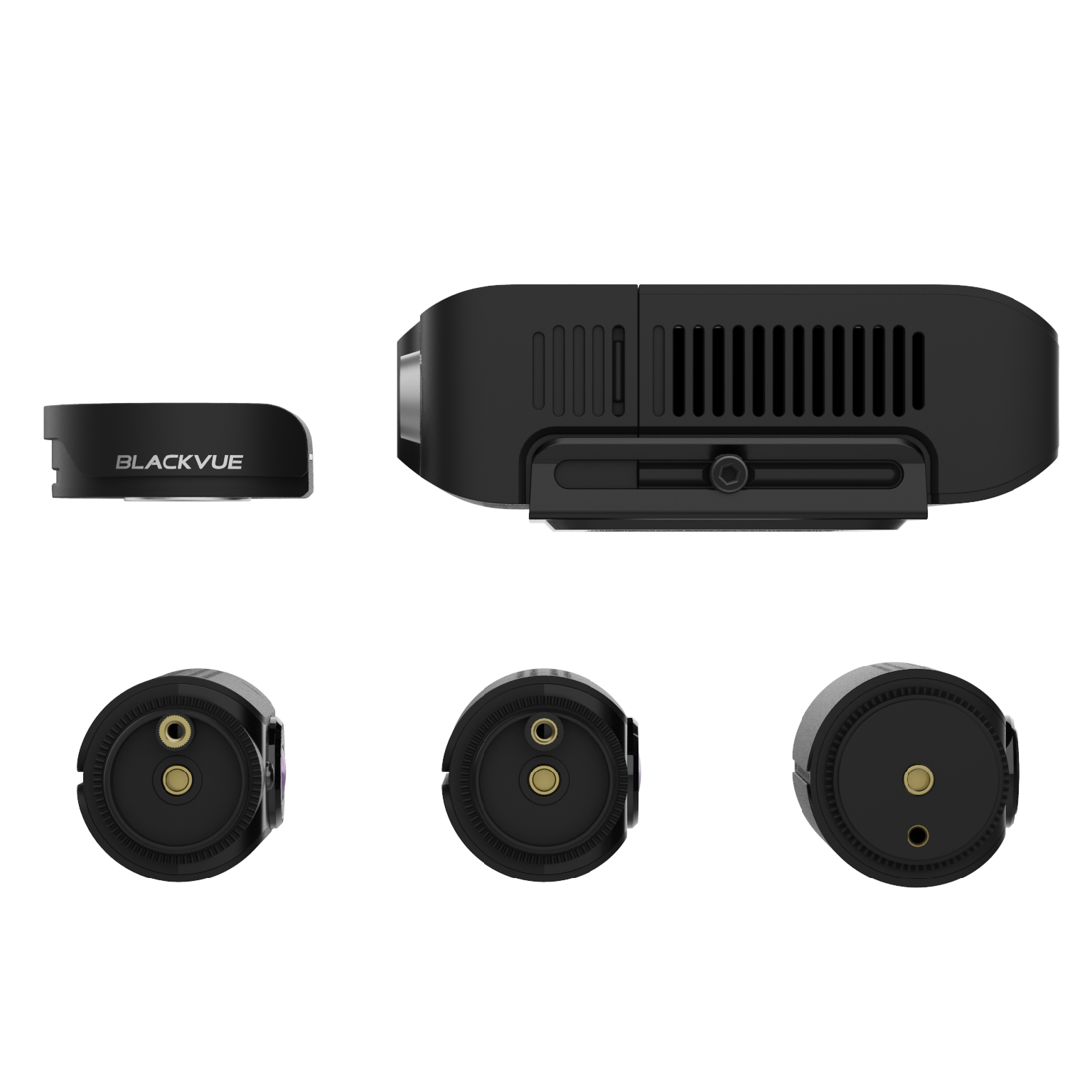

The DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity.

The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected “Box” recording unit,
which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for best image quality under any light,
and the interior camera can record even in full darkness with its infrared LEDs.

Wireless “SOS” button included to trigger Manual Event recordings.
Native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.
Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.

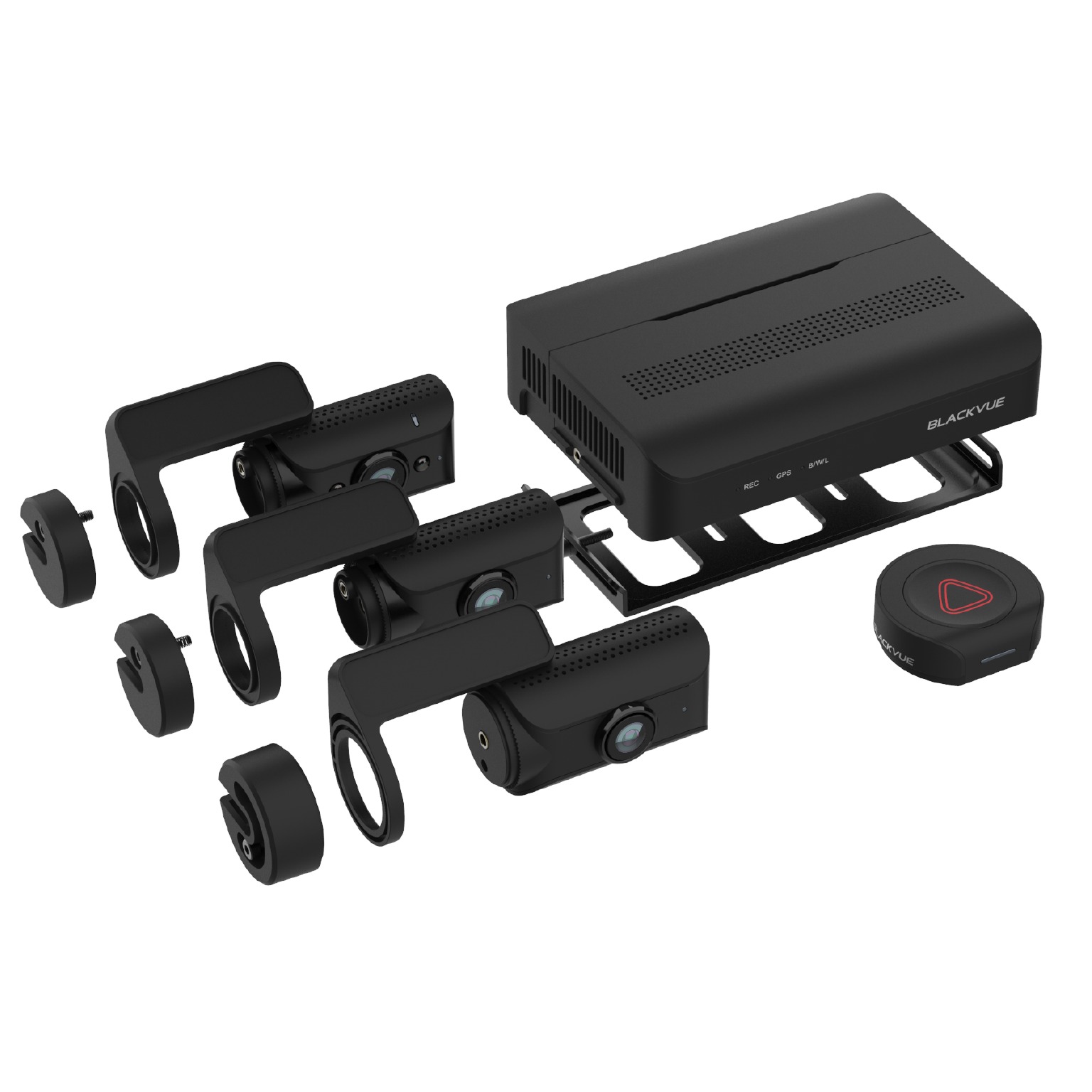

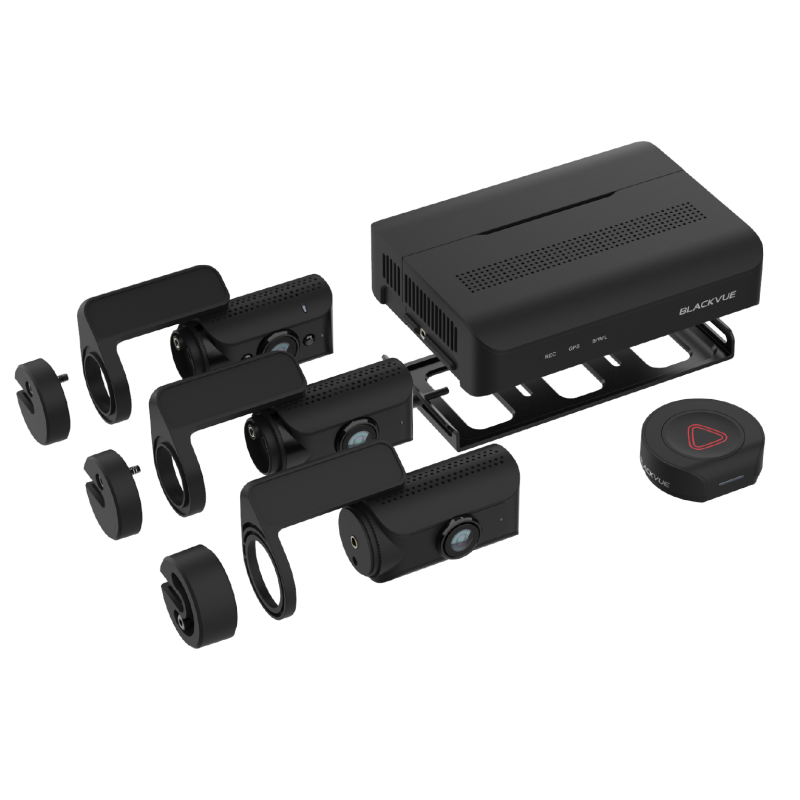

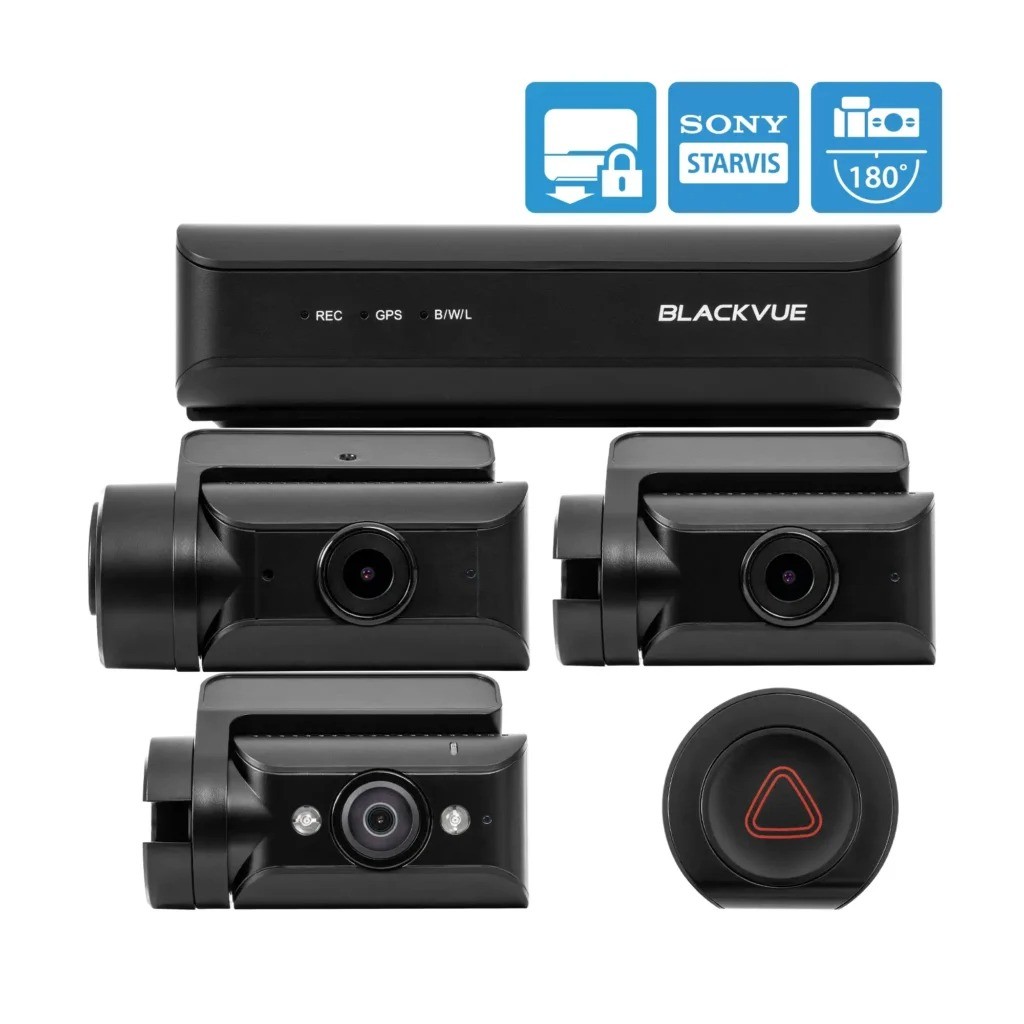

Three Cameras and Secure Recording Box

Front, interior and rear protection.

All three cameras use back-illuminated STARVIS image sensors that produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
Ultra-wide interior-facing camera: the 180-degree view angle allows to cover both driver-side and passenger-side windows in most vehicles. With its infrared illumination LEDs, it captures clear details even in complete darkness.

Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).

With the free BlackVue Cloud service, check on your car from anywhere, anytime.

Seamless Pairing with the BlackVue App

Effortless setup.

With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

Note: the pairing process uses the SOS Button so make sure you add the button first.

GPS, Wi-Fi and Optional LTE

External GPS (included): embeds speed and location data in your videos. This allows you to track your vehicle in real-time via BlackVue Cloud and view its location on a map during playback in the BlackVue App or Viewer.

Wi-Fi: connect to your BlackVue with a smartphone or tablet for fast file transfer. Wi-Fi also lets your BlackVue connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router).

LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience.

(*) SIM card not included.

Ultrawide Infrared Interior Camera

The Infrared Camera secures the interior of your vehicle. The inconspicuous infrared LEDs automatically activate based on the ambient light.
The camera’s spectacular clarity even in pitch black lighting conditions will procure peace of mind to taxi and rideshare drivers.
With its ultrawide 180-degree view angle, the camera can capture both the driver-side and passenger-side windows at the same time in most vehicles.
Using the BlackVue App or Viewer, you can further customize the way it operates.

  • 180° Image Rotation (in settings) to accommodate your setup: if the image comes out upside down, just activate this feature and it will fix the image orientation.
  • Security LED ON/OFF (for stealth in Parking Mode)

Built-in Speaker, Impact sensor and Motion Detection

Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: located in the front camera, it detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Automatically tags video files: While driving, the built-in accelerometer (G-sensor) detects impacts and sudden changes in speed. While parked, your BlackVue also detects visual movements around your vehicles (in Motion + Impact detection mode).
Use the filters in the BlackVue App and Viewer: BlackVue tags all videos (Normal, Event, Parking Mode, etc.), so that you can filter them and quickly find the ones you need in the BlackVue Viewer (Windows, Mac OS, Web) or the BlackVue App (Android, iOS).

(*) Parking Mode Kit or Battery is required.

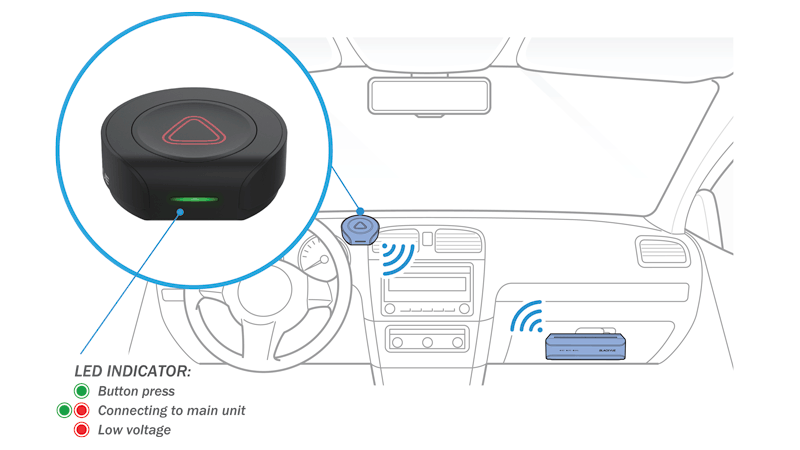

Wireless Button

Easily and safely trigger Manual Event recording.

  1. Install it in an easy-to-reach location.
  2. Hold the button to pair it with Box unit (first-time use only).
  3. Press the button to trigger Manual Event recording.
  4. In the BlackVue App or Viewer, use the file type filters to quickly find Manual Event clips.

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Easily manage your video files

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.

With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.

With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

BlackVue Cloud

Me and My Car. Connected.

Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.

Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remove Live View.

Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.

Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.

Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty-one (51) files can be protected this way (17 minutes Front/Rear/Interior). You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty-one.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Native Parking Mode

Hardwiring cable included
DR770X Box Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR770X Box Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

LTE Connectivity Module (Optional)

Unlock BlackVue Cloud access. Share Wi-Fi in your car.

The CM100GLTE provides easy 4G LTE and GPS connectivity to enable BlackVue Cloud features. All you need is a valid Nano SIM card.

When connected to the CM100GLTE, your BlackVue can serve as a mobile hotspot providing wireless Internet access to up to five devices (smartphone, tablet, etc.).
Note: when purchasing, make sure the CM100GLTE you choose is compatible with your mobile carrier’s network.

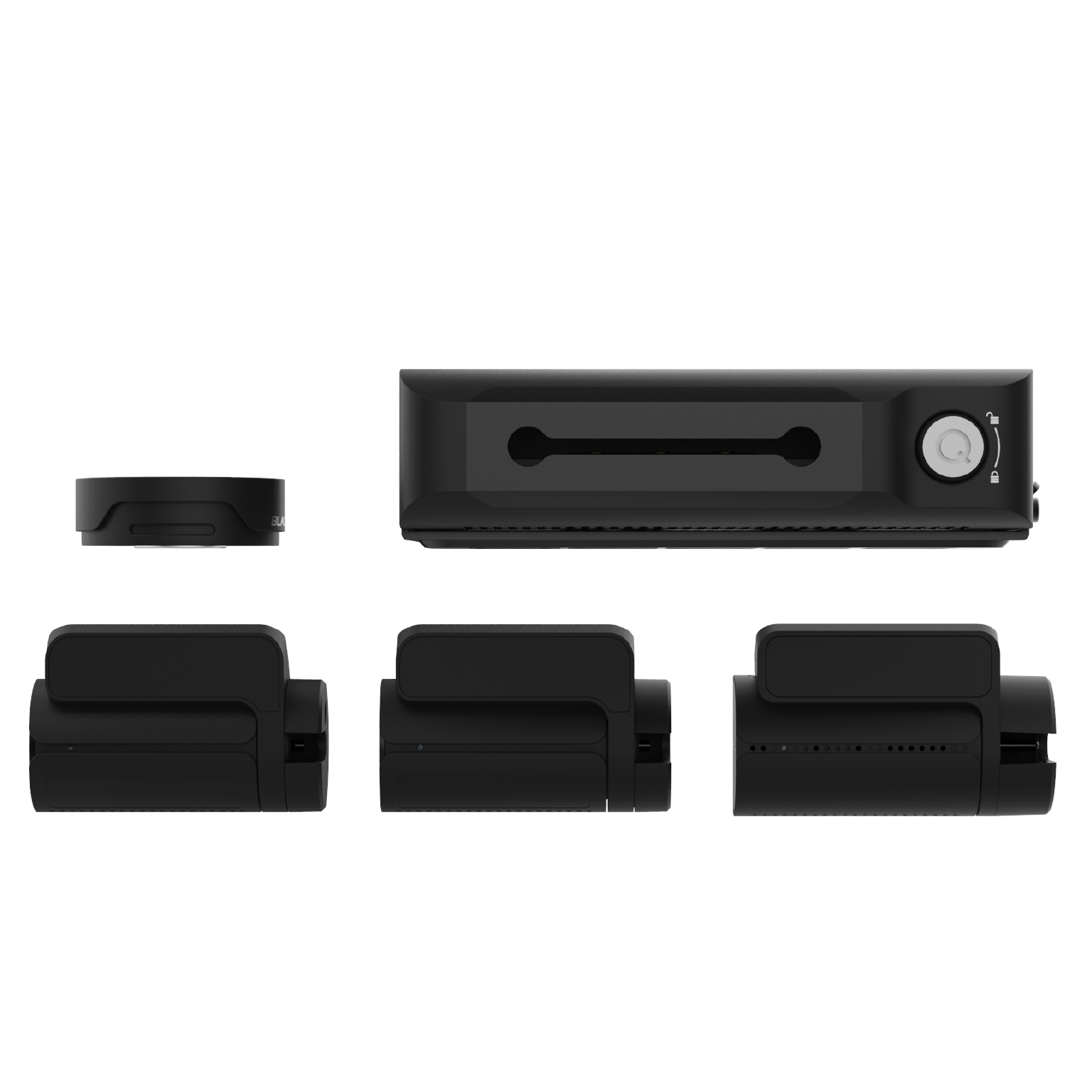

Built-in Tamper-Proofing

The DR770X Box is designed from the ground up to prevent tampering.
Main unit: cover with lock and key to prevent access to the microSD card and the cable connectors.

Cameras: covers with hex screw to prevent the unplugging of cables and lock the camera angle in the mount.

Triple protection

  • Locks the dashcam’s angle via a hex screw to prevent rotation.
  • Blocks the access to the microSD card slot.
  • Protects against the unplugging of the power, video, and USB cables.

Specificaties

Model Name DR770X Box
Channel 3CH
Highlights Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions Main unit: Black / L 130.0 mm x W 101.0 mm x H 33.0 mm / 209 g, Front: Black / L 62.5 mm x W 34.3 mm x H 34.0 mm / 43 g, Rear + Interior IR: Black / L 63.5 mm x W 32.0 mm x H 32.0 mm / 34 g
Rear Camera Connection Coaxial cable
Memory Support MicroSD card up to 512 GB
Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
Parking Mode YES (hardwiring cable included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel), Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel), Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle Front: Diagonal 139°, Horizontal 116°, Vertical 61°, Rear: Diagonal 116°, Horizontal 97°, Vertical 51°, Interior IR: Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution Frame Rate Front / Rear / Interior IR, Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps – Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Front / Rear / Interior, Highest(Extreme): 16 + 10 + 10 Mbps, Highest: 12 + 10 + 10 Mbps, High 10 + 8 + 8 Mbps, Normal: 8 + 6 + 6 Mbps
Format Free YES (adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b, g, n)
Cloud Compatible YES
GPS External (Dual Band: GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Main unit: Recording LED, GPS LED, BT/Wi-Fi/LTE LED, Front: Front & Rear Security LED, Interior IR: Front & Rear Security LED, EB-1: Operating/ Battery low voltage LED
Button EB-1 button : Press the button – manual recording.
Operation Temperature -20°C – 70°C (-4°F – 158°F)
Storage Temperature -20°C – 80°C (-4°F – 176°F)
High Temp Cut Off Approx. 80°C (176°F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Certifications Front (with Main unit & EB-1) : FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS, Rear, Rear Truck & Interior IR : KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS
Software BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher
Application BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format Free File Management System, Advanced Driver Assistance System, LDWS (Lane Departure Warning System), FVSA (Forward Vehicle Start Alarm)
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
Rear Camera IR Illumination 940nm (2 Infrared (IR) LEDS)
